Whether you’re designing for automotive systems, medical devices, pump & fluid handling, robotics, or consumer electronics, coating selection should be evaluated alongside magnet grade, geometry, and operating environment. This guide outlines key coating types, performance characteristics, and when each is appropriate.
Engineering Considerations Before Selecting a Magnet Coating
Before selecting a coating, evaluate:
1. Operating Environment
- Ambient indoor exposure
- High humidity or condensation
- Salt spray or marine conditions
- Chemical exposure
- Full fluid immersion
2. Temperature Profile
- Maximum sustained temperature
- Intermittent peak exposure
- Thermal cycling frequency
3. Assembly & Tolerance Sensitivity
- Air gap sensitivity
- Press-fit applications
- Adhesive bonding requirements
- Stack-up tolerance impact
4. Mechanical Stress
- Impact risk
- Abrasion
- Handling during assembly
5. Regulatory Requirements
- Biocompatibility
- Food-grade compliance
Many coating failures originate from environmental assumptions made early in design. In sealed pump assemblies and fluid handling environments, coating degradation can compromise containment integrity and significantly reduce system lifespan.

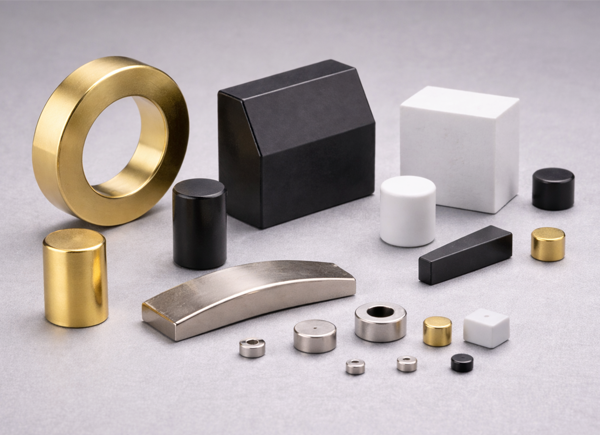

Common Magnet Coatings & Their Characteristics
Below is a technical overview of widely used coating options, including performance characteristics and recommended use cases.
Nickel (Ni-Cu-Ni)
Nickel is the most common standard magnet coating.
- Triple-layer plating: Nickel–Copper–Nickel
- Corrosion resistance in ambient indoor environments
- Light protection against minor chipping
Recommended for: Indoor, controlled environments; motors, sensors, generators; automotive and pump systems without aggressive exposure.
Avoid when: Prolonged humidity exposure; salt spray or marine environments; chemical immersion.
Black Nickel
Black nickel uses the same Ni-Cu-Ni structure with a darkened surface finish.
- Primarily aesthetic variation
- Similar corrosion resistance to standard nickel
Recommended for: Applications requiring darker appearance; controlled indoor environments.
Avoid when: Humid, marine, or chemical exposure.
Epoxy Coating
Epoxy is a polymer-based barrier coating designed to improve corrosion resistance.
- Strong resistance to salt air and saltwater
- Good adhesion when using magnet-rated adhesives
- Surface can scratch if mishandled
Recommended for: Marine or outdoor environments; automotive exposure; applications requiring higher corrosion resistance than nickel.
Avoid when: Ultra-tight tolerance assemblies; abrasion-heavy environments without controlled handling.
Parylene
Parylene is a conformal vapor-deposited coating known for uniformity and thin application.
- Extremely thin and consistent
- Suitable for biocompatible applications
- Strong chemical resistance
- May require undercoating in prolonged saltwater exposure
Recommended for: Medical and implantable devices; tight tolerance assemblies; precision robotics and sensor systems.
Avoid when: Heavy mechanical abrasion; long-term saltwater exposure without undercoating.
Zinc
Zinc is a thin metallic coating primarily used for basic corrosion protection.
- Moderate resistance in ambient air
- Limited protection in humid or fluid environments
Recommended for: Cost-sensitive indoor applications; low-temperature environments.
Avoid when: High humidity; fluid or chemical exposure.
Gold
Gold is typically applied over a Ni-Cu-Ni base layer and is often selected for medical applications.
- Biocompatible surface option
- Thin layer provides limited salt spray resistance
Recommended for: Medical devices (in-body and external use); specialty electronic interfaces.
Avoid when: Aggressive salt spray environments; cost-sensitive industrial applications.
Titanium Nitride (TiN)
Titanium Nitride is a hard, wear-resistant coating with strong chemical resistance.
- Strong adhesion to substrate
- High durability
- Suitable for medical use
Recommended for: Medical components; high-wear mechanical interfaces; high-temperature systems.
Avoid when: Low-cost commodity applications.
Injection Molded Plastic
Injection molding encapsulates the magnet within a protective polymer housing.
- Excellent impact resistance
- Strong corrosion protection
- Requires molds and tooling
- Significantly increases overall thickness
Recommended for: Impact-prone environments; wash-down or fluid exposure; applications requiring mechanical durability.
Avoid when: Tight air gap sensitivity; space-constrained assemblies.
Molded PTFE (Teflon)
Molded PTFE provides excellent chemical and fluid resistance.
- Suitable for autoclave environments
- Poor adhesive bonding — mechanical retention recommended
Recommended for: Medical applications; food processing environments; chemical immersion.
Avoid when: Adhesive bonding is required; tight tolerance assemblies.
Spray PTFE
Spray PTFE is a thinner alternative to molded PTFE.
- Food-grade option
- Suitable for smaller geometries
- Good corrosion resistance
- Surface can scratch if mishandled
Recommended for: Food-grade applications; moderate fluid exposure; smaller components.
Avoid when: High abrasion environments.
Rubber Coating
Rubber coating adds impact protection and surface friction.
- Provides mechanical durability
- Improves grip in holding applications
- Requires tooling
- Increases overall thickness
Recommended for: Holding or mounting applications; industrial environments requiring friction.
Avoid when: High-temperature systems; precision assemblies.
Rhodium
Rhodium is a dense, wear-resistant coating offering strong resistance to corrosion and surface degradation.
- Enhanced surface durability
- Excellent corrosion resistance
- Strong wear performance
- Suitable for medical applications
Recommended for: Medical devices; specialty automotive components; high-performance assemblies requiring surface integrity.
Avoid when: Cost-sensitive applications; environments where nickel or epoxy is sufficient.
Decorative Coatings (Copper, Chrome, Silver)
These coatings are primarily aesthetic finishes with limited corrosion protection.
Recommended for: Cosmetic applications; consumer products; jewelry.
Avoid when: Marine environments; chemical exposure; industrial or medical reliability requirements.
How Coating Thickness Affects Magnetic Performance
Coating thickness increases effective air gap. In applications sensitive to flux density — such as motors, sensors, or magnetic couplings — even small dimensional increases can:
- Reduce field strength
- Affect torque output
- Influence sensor calibration
- Impact press-fit tolerances
Coating selection should be evaluated in conjunction with magnetic performance requirements.
Prototyping & Off-the-Shelf Coated Magnets
During early-stage validation, many standard plated and coated magnets are available for rapid evaluation through our eCommerce division, SuperMagnetMan. This allows engineering teams to test geometry, air gap sensitivity, and environmental performance before finalizing production specifications.
For applications requiring specialized coating thickness, undercoating strategies, or regulatory validation, custom engineering support may be required.
Engineering Support & Custom Solutions
For applications involving:
- Aggressive chemical exposure
- Sterilization cycles
- Tight air gap sensitivity
- High-temperature operation
- Regulatory compliance
Early coating evaluation can prevent downstream redesign. SM Magnetics provides engineering guidance for material selection, coating trade-offs, environmental validation, and production transition to support long-term reliability.
